Simpson Strong-Tie

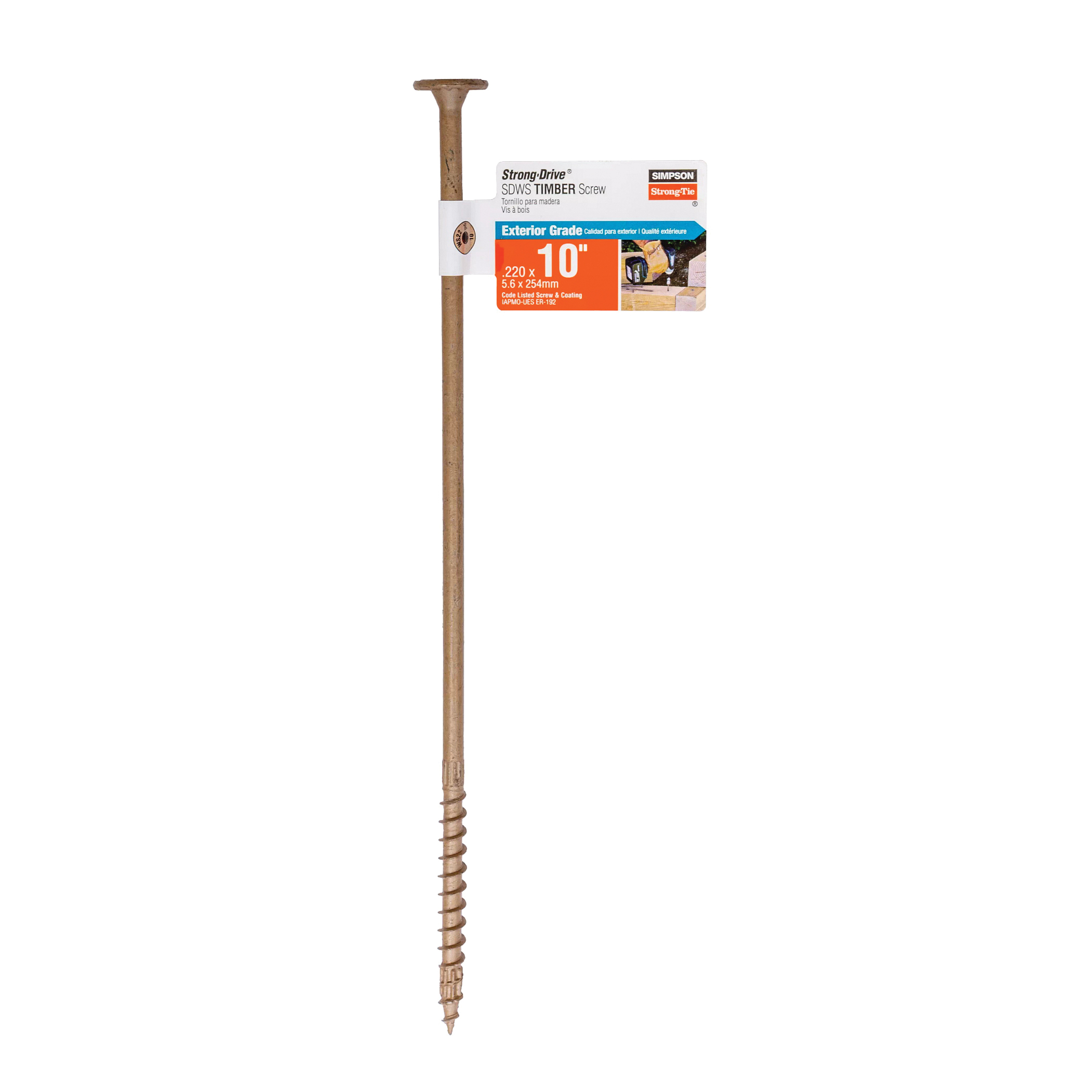

Simpson Strong-Tie Strong-Drive SDWS SDWS221000DB-RP1 Timber Screw, 10 in L, Serrated Thread, Washer Head, Tan, Steel
- Applicable Materials: Wood
- Color: Tan
- Drive Size: T40
- Drive Type: 6-Lobe, Star
- Finish: Double-Barrier Coated
- Model #: SDWS221000DB-RP1
- UPC #: 707392000112
- SKU: 7501497
Product Details
The Strong-Drive® SDWS timber screw is designed to provide an easy to install, high-strength alternative to through-bolting and traditional lag screws. This screw is ideal for the contractor and do-it-yourselfer alike. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for most common wood framing applications.Key Features
- SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for pre-drilling in most applications
- Bold thread design provides excellent holding power
- Under-head nibs offer greater control when seating the head
- Large low-profile washer head provides maximum bearing area (3/4 in head Dia)
- Size identification on all SDWS screw heads
- Six-lobe T40 drive provides positive engagement that makes the screw easy to drive and improves bit life
- Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization, making it suitable for certain exterior and preservative-treated-wood applications
Item Specifications
| Applicable Materials | Wood |
|---|---|
| Color | Tan |
| Drive Size | T40 |
| Drive Type | 6-Lobe, Star |
| Finish | Double-Barrier Coated |
| Head Type | Washer |
| Length | 10 in |
|---|---|
| Material | Steel |
| Package Quantity | 1 PK |
| Point Type | SawTooth |
| Thread Length | 2-3/4 in |
| Thread Type | Serrated |
MORE DETAILS:
- Simpson_Strong_Tie_100316314_Catalog.pdf
- Simpson_Strong_Tie_100316314_Specification_Sheet.pdf
- Application: For structural wood-to-wood/engineered including ledgers, mass timber connections including CLT wall-to-wall, floor-to-floor, surface splines and lap joints
